| MBS/MBF/MBM/ABS/DBS/DB-1 RECTIFIER BRIDGES 貼片橋堆 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 1A係列 | ||||||

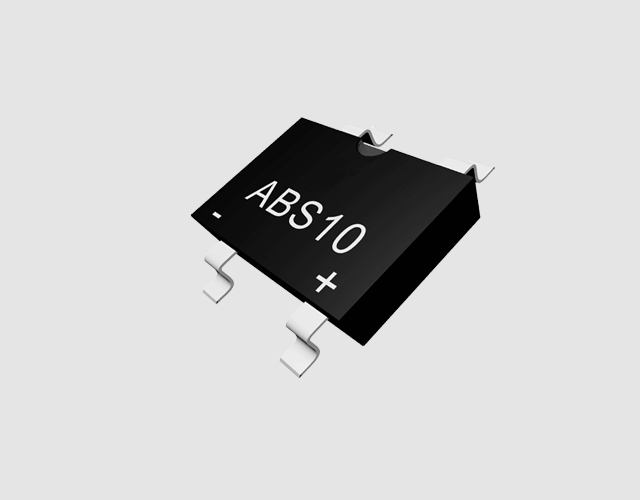

| ABS2 | 1.00 | 0.95 | 200.00 | 5.00 | ABS | 5K |
| ABS4 | 1.00 | 0.95 | 400.00 | 5.00 | ||
| ABS6 | 1.00 | 0.95 | 600.00 | 5.00 | ||
| ABS8 | 1.00 | 0.95 | 800.00 | 5.00 | ||
| ABS10 | 1.00 | 0.95 | 1000.00 | 5.00 | ||
東莞市羞羞视频入口電子有限公司 晶導二極管|晶導整流橋|JD橋堆|羞羞视频入口電子
| MBS/MBF/MBM/ABS/DBS/DB-1 RECTIFIER BRIDGES 貼片橋堆 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 1A係列 | ||||||
| ABS2 | 1.00 | 0.95 | 200.00 | 5.00 | ABS | 5K |
| ABS4 | 1.00 | 0.95 | 400.00 | 5.00 | ||
| ABS6 | 1.00 | 0.95 | 600.00 | 5.00 | ||
| ABS8 | 1.00 | 0.95 | 800.00 | 5.00 | ||
| ABS10 | 1.00 | 0.95 | 1000.00 | 5.00 | ||
